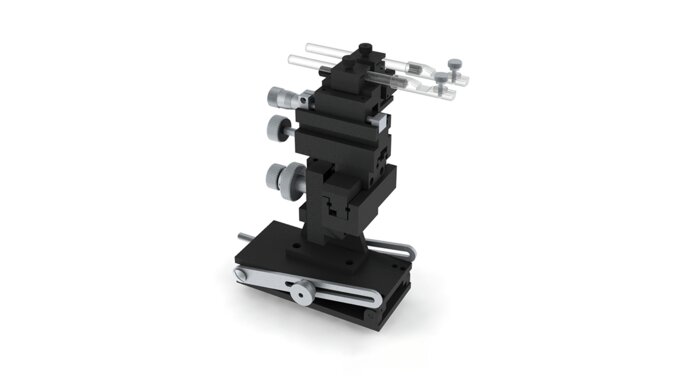

MD 4

Additional Information

• left-sided, with tilting device
• manual movement in 3 axes (XYZ)
  • adjustment range X axis: 37 mm
  • adjustment range Y axis: 20 mm
  • adjustment range Z axis: 25 mm
• manual movement in 3 axes (XYZ)
• second electrode holder is independently turn-/tiltable and shiftable in XY direction
• several micromanipulators can be set up side by side
• coarse adjustment with 0.1 mm reading accuracy
• fine adjustment with 0.01 mm reading accuracy (micrometer screw)
• optional Z-axis stop avoids lowering of the micromanipulator (drift) when working with weighty loads
