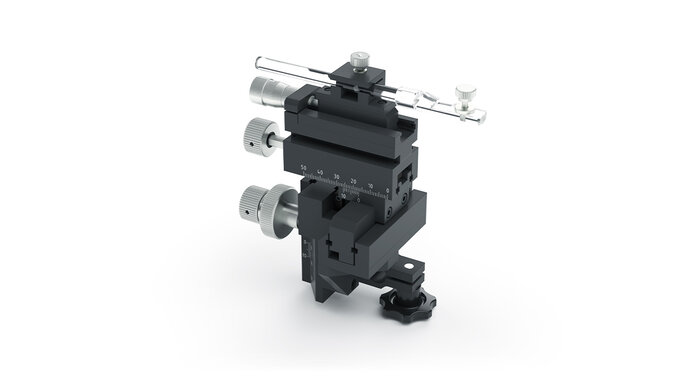

MM 33

Additional Information

• left-sided, with clamp 12 mm
• manual movement in 3 axes (XYZ)
  • adjustment range X axis: 37 mm
  • adjustment range Y axis: 20 mm
  • adjustment range Z axis: 25 mm
• control knobs mounted in line on the rear of the micromanipulator
• several micromanipulators can be set up side by side
• coarse adjustment with 0.1 mm reading accuracy
• fine adjustment by micrometer screw with 0.01 mm reading accuracy
• optional Z-axis stop avoids lowering of the micromanipulator (drift) when working with weighty loads
