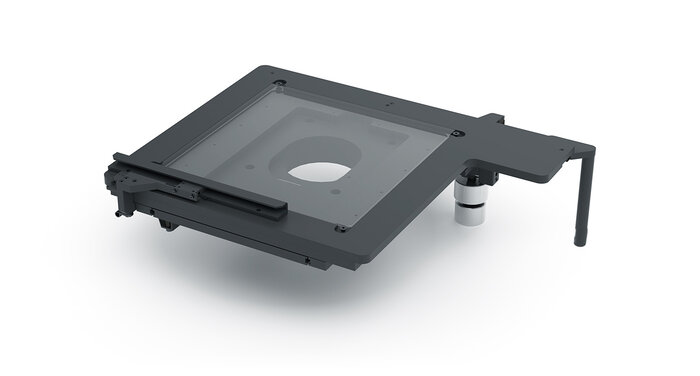

MTM 200 x 200 MR
Part number: 45-0131-0807-0000
Additional Information
- Manual measuring stage, travel range 200 x 200 mm
- incl. MR-measuring system, GetPos and digital read-out PROFILER SCD (p/n 00-76-900-4830)
- resolution 1 µm, may be switched to 0,1 µm
- self-locking coaxial drive for fine adjustment
- quick adjustment due to friction drive is also integrated
- incl. metal insert plate (p/n 00-24-801-0011)
- adaption for Nikon Eclipse L200N
