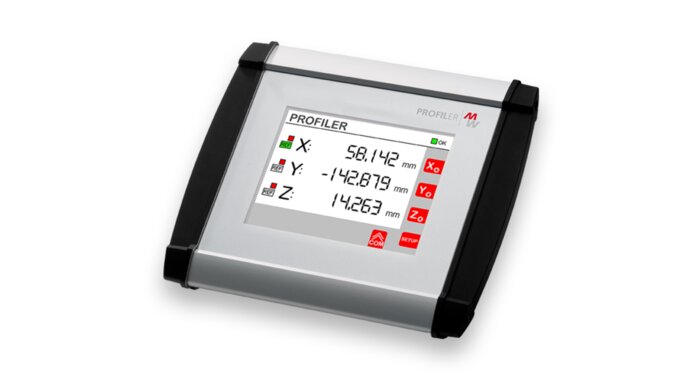

PROFILER ST
Part number: 00-76-900-4831
Additional Information
- precise length measurement in 3 axes
- supports 1Vss, TTL (RS-422) and SSI measuring systems (SSI optional)
- reference switch inputs
- large resistive touch display
- convenient and intuitive operation
- requires no PC for operation
- RS-232/USB data logger (optional)
- zeroing of the display with display button, input or reference signal
- data transfer to the PC with display button or input signal
- error correction (section by section)
- units of measurement: μm, mm, cm, m, inch, mil
- acoustic feedback on input
- programmed operation via USB or RS-232 interface
- graphic user interface can be customized for OEM customers
